NavWave Systems VEGA-LITE – 433MHz Radio
Model: NWS-VL-TR-5W
Highlights
Description

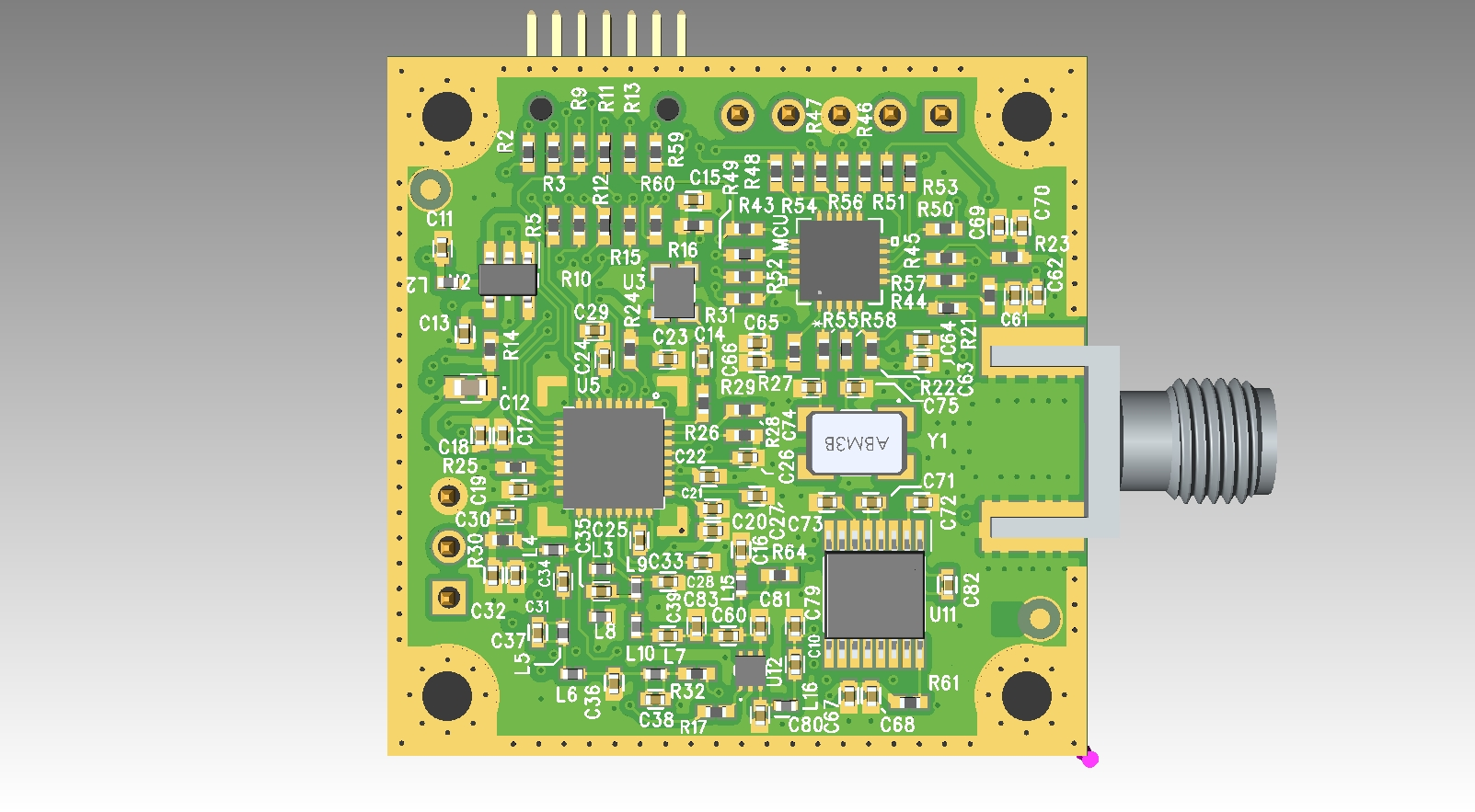

The NavWave Systems VEGA-LITE is a compact, high-performance wireless radio module designed for long-range, low-power communication applications. Operating in the 420 MHz–470 MHz frequency band, the module integrates a high-performance RF transceiver, power amplifier, and embedded controller to deliver reliable wireless connectivity with an RF output power of up to 5 W (37 dBm).
Designed as a ready-to-integrate communication module, the VEGA-LITE is suitable for industrial automation, telemetry, remote monitoring, smart infrastructure, and other long-range wireless applications requiring robust and dependable RF performance. The module supports bidirectional wireless communication with excellent receiver sensitivity, high link reliability, and optimized power efficiency.
Key Features
- Operating Frequency: 420 MHz–470 MHz
- TX Power: 37 dBm
- Operating Voltage: 12V
- Power ON Indication: Green LED
- Out Connector: SMA(F)
- Current Consumption: 2A (Max) Tx
- Current Consumption: Less than 10mA Rx
- Current Drawn: 10 mA in Idle State
- Antenna Impedance: 50 Ohms
- Power Supply Interface: Through Feed Through and Ground LUG
- Damage Input Power: 7 dBm
- Damage Input Power Limit: Not More Than 7 dBm
