NavWave Systems Vyom-Lite – 2.4GHz-2.5GHz Bi-Directional Power Amplifier-1W
Model: NWS-VY24-1W
Highlights
Description

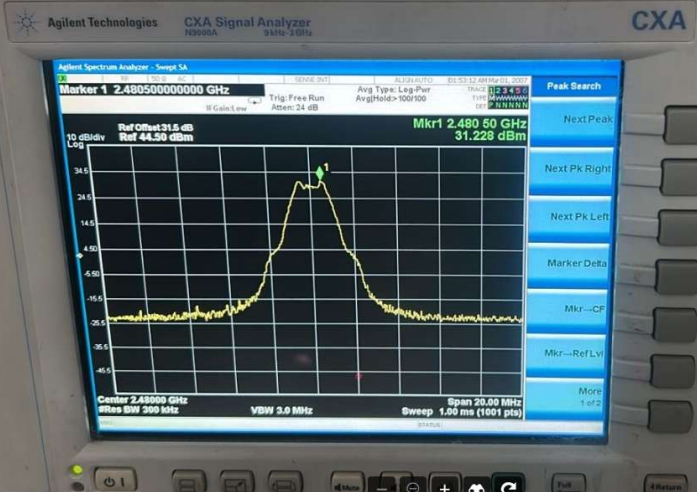

The Navwave Systems Vyom-Lite, NWS-VY24-1W, is a compact, high-performance Bi-Directional Amplifier delivering one watt (30 dBm) of output power. Designed as an add-on module, it is fully compatible with Zigbee and Wi-Fi transceiver modules, operating seamlessly across the 2.4 GHz – 2.5 GHz frequency band.
The Vyom-Lite supports both transmit (Tx) and receive (Rx) operations autonomously, requiring no external control logic from the host Zigbee/Wi-Fi transceiver. In the transmit direction, the module delivers a robust 1W output to the antenna port, ensuring reliable signal transmission. In the receive direction, the module operates with minimal insertion loss to preserve signal integrity. Additionally, an optional low-noise gain path is available for the receive chain, which can be enabled based on specific customer requirements.
Key Features
- 2.4 GHz-2.5 GHz Operating Frequency
- 28 dB Gain in Tx Path
- 15 dB Gain in Rx Path
- -2 dB Bypass LNA Path
- 31.5 dBm 1 dB GCP
- 5 dBm Input Power for 1 W Output
- Damage Input Power: 8 dBm
- SMA(F) In/Out Connectors
- 5V Operating Voltage
- 900mA (Max) Current Consumption in Tx
- Less than 10mA Current Consumption in Rx
- 10 mA Current Drawn in Idle State
- Green LED Power ON Indication
- Mechanical Dimensions: 70mm x 43mm x 24mm (L x W x H)
- In/Out Impedance: 50 Ohms
- Power Supply Interface: Through Feed Through and Ground LUG
